Degreasing
Degreasing LINE
Purpose
Removes surface imperfections and roughness of strips with a buffing device.
Basic data
- Material: copper and copper alloy strip
- Strip thickness: 0.1 - 1.5 mm
- Strip width: 300 ~ 650 mm
- Coil weight: max. 6,500 kg
- Coil I.D.: 400 mm
- Coil O.D.: max. 1,350 mm
Line specification
- Line speed: max 60 m/min
Degreasing Line
Machine description
- Strip is pulled from the pay-off reel to undergo stitching, ultrasonic cleaning, and rinsing processes
- Strip passes through pickling, buffing, cold rinsing and drying processes
- At end of process, strip is wound on tension reel
Main Features
Buffing Unit
Buffing Unit
- Equipped with a motor for each component
- Equipped with individually adjustable wheels
Ultrasonic cleaning and rinsing
Ultrasonic cleaning and rinsing
- Improves scrubbing by using ultrasonic wave

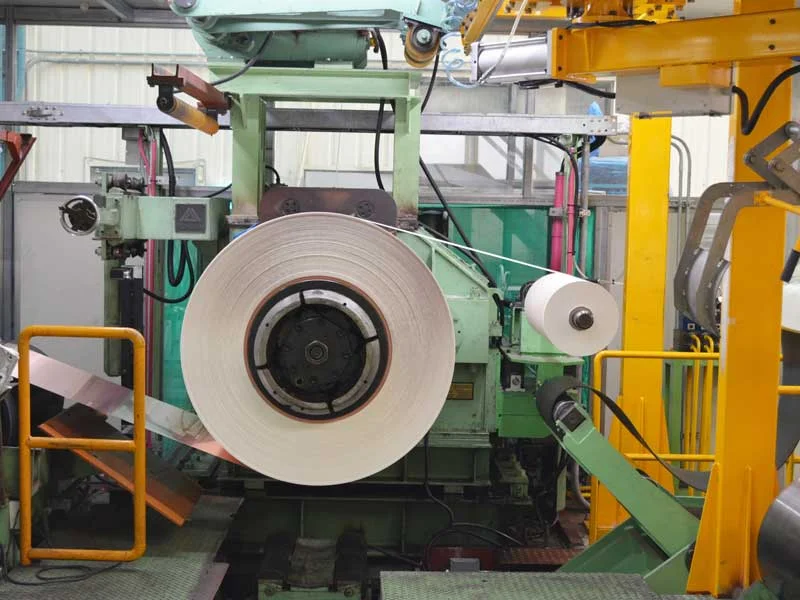

Tension Reel
Tension Reel
- Includes an automatic coil ejection system
Acid Pickling
Acid Pickling
Improves scrubbing by using a dipping chamber
| No. | Item | Description |
|---|---|---|
| 1 | Pay-off reel | Unwinds strip |
| 2 | Ultrasonic cleaning & rinsing | Removes foreign matter from strip surface by using ultrasonic waves |
| 3 | Acid pickling | Cleans strip surface with acid solution |
| 4 | Buffing | Removes foreign matter and polishes strip surface with a buffing wheel |
| 5 | Cold rinsing | Rinses off remaining acid solution and foreign matter with cold water |
| 6 | Dryer | Dries strip |
| 7 | Tension reel | Winds strip |
